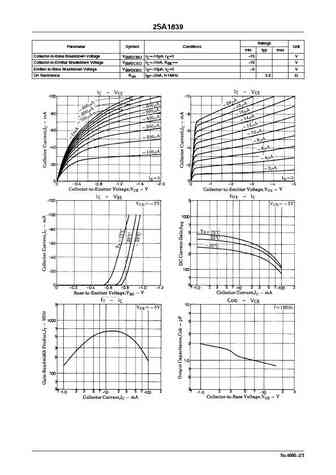

View 2sa1839 datasheet:

Ordering number:EN4666PNP Epitaxial Planar Silicon Transistor2SA1839Muting Circuit ApplicationsFeatures Package Dimensions Very small-sized package permitting 2SA1839-unit:mmapplied sets to be made small and slim.2018B Small output capacitance.[2SA1839] Low collector-to-emitter saturation voltage. Low ON resistance.1 : Base2 :Emitter3 : CollectorSANYO : CPSpecificationsAbsolute Maximum Ratings at Ta = 25CParameter Symbol Conditions Ratings UnitCollector-to-Base Voltage VCBO 15 VCollector-to-Emitter Voltage VCEO 10 VEmitter-to-Base Voltage VEBO 5 VCollector Current IC 100 mAColletor Current (Pulse) ICP 200 mABase Current IB 20 mACollector Dissipation PC 250 mWJunction Temperature Tj 150 CStorage Temperature Tstg 55 to +150 CElectrical Characteristics at Ta = 25CRatingsParameter Symbol
