View 2sa1941 datasheet:

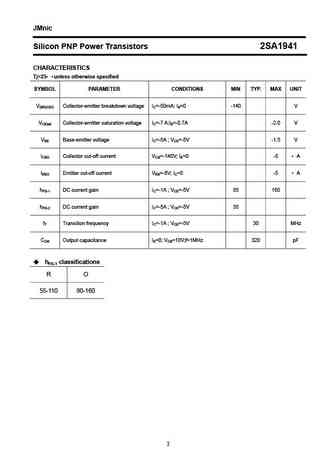

JMnic Product Specification Silicon PNP Power Transistors 2SA1941 DESCRIPTION With TO-3P(I) package Complement to type 2SC5198 APPLICATIONS Power amplifier applications Recommend for 70W high fidelity audio frequency amplifier output stage PINNING PIN DESCRIPTION1 Base Collector;connected to 2 mounting base Fig.1 simplified outline (TO-3P(I)) and symbol 3 EmitterAbsolute maximum ratings(Tc=25) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter -140 V VCEO Collector-emitter voltage Open base -140 V VEBO Emitter-base voltage Open collector -5 V IC Collector current -10 A IB Base current -1 APC Collector power dissipation TC=25 100 W Tj Junction temperature 150 Tstg Storage temperature -55~150 JMnic Silicon PNP Power Transistors 2SA1941 CHARACTERISTICS Tj=25 unless otherwis
