View 2sa1943 datasheet:

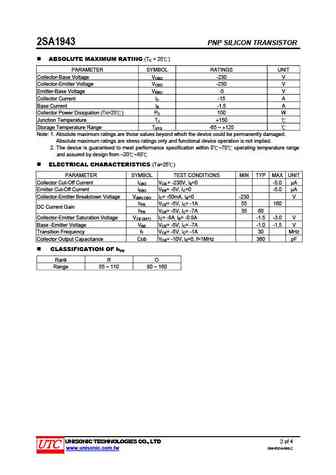

UNISONIC TECHNOLOGIES CO., LTD 2SA1943 PNP SILICON TRANSISTOR POWER AMPLIFIER APPLICATIONS FEATURES * Complementary to UTC 2SC5200 * Recommended for 100W High Fidelity Audio Frequency Amplifier Output Stage 1TO-3PL ORDERING INFORMATION Ordering Number Pin AssignmentPackage Packing Lead Free Halogen Free 1 2 32SA1943L-x-T3L-T 2SA1943G-x-T3L-T TO-3PL B C E Tube2SA1943L-x-T3L-T(1) T: Tube(1)Packing Type(2) T3L: TO-3PL(2)Package Type(3) x: refer to Classification of hFE(3)Rank(4) L: Lead Free , G: Halogen Free(4)Lead Freewww.unisonic.com.tw 1 of 4 Copyright 2011 Unisonic Technologies Co., Ltd QW-R214-006,C 2SA1943 PNP SILICON TRANSISTOR ABSOLUTE MAXIMUM RATING (TC = 25) PARAMETER SYMBOL RATINGS UNITCollector-Base Voltage VCBO -230 VCollector-Emitter Voltage VCEO -230 VEmitter-Base Voltage VEBO -5 VCollector Current
