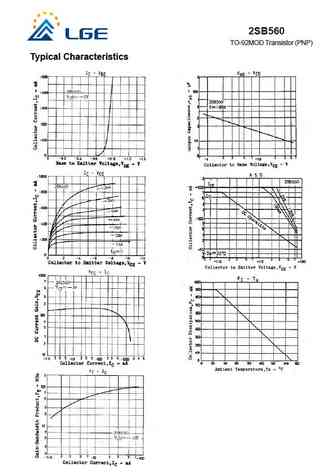

2SB560 TO-92MOD Transistor (PNP)TO-92MOD1. EMITTER 12. COLLECTOR 2 3 3. BASE Features High reverse voltage 5.8006.200Low saturation voltage Suitable universal AF power amplifier use 8.4008.800MAXIMUM RATINGS (TA=25 unless otherwise noted) 0.9001.100Symbol Parameter Value Units0.4000.600VCBO Collector-Base Voltage -100 V 13.80014.200VCEO Collector-Emitter Voltage -80 V VEBO Emitter-Base Voltage -5 V 1.500 TYPIC Collector Current -Continuous -0.7 A 2.900Dimensions in inches and (millimeters)3.100PC Collector Power Dissipation 900 mW 0.000 1.6000.380TJ Junction Temperature 150 0.4004.7000.5005.100Tstg Storage Temperature -55-150 1.7302.0304.000ELECTRICAL CHARACTERISTICS (Tamb=25 unless otherwise specified) Parameter Symbol Test conditions MIN MAX UNITCollector-base breakdown
