View 2sb562 datasheet:

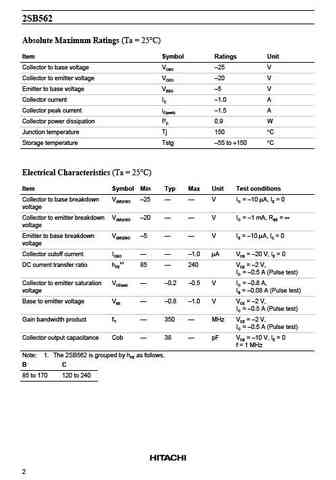

2SB562Silicon PNP EpitaxialApplication Low frequency power amplifier Complementary pair with 2SD468OutlineTO-92MOD1. Emitter2. Collector3. Base3212SB562Absolute Maximum Ratings (Ta = 25C)Item Symbol Ratings UnitCollector to base voltage VCBO 25 VCollector to emitter voltage VCEO 20 VEmitter to base voltage VEBO 5 VCollector current IC 1.0 ACollector peak current iC(peak) 1.5 ACollector power dissipation PC 0.9 WJunction temperature Tj 150 CStorage temperature Tstg 55 to +150 CElectrical Characteristics (Ta = 25C)Item Symbol Min Typ Max Unit Test conditionsCollector to base breakdown V(BR)CBO 25 V IC = 10 A, IE = 0voltageCollector to emitter breakdown V(BR)CEO 20 V IC = 1 mA, RBE = voltageEmitter to base breakdown V(BR)EBO 5 V IE = 10 A, IC =
