View 2sb566 2sb566a datasheet:

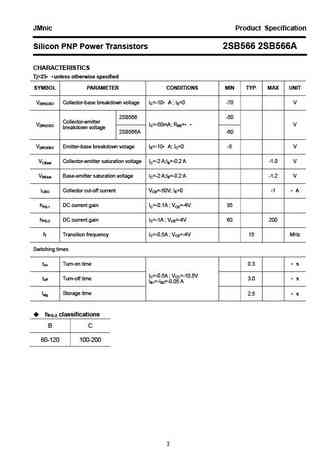

JMnic Product Specification Silicon PNP Power Transistors 2SB566 2SB566A DESCRIPTION With TO-220C package Complement to type 2SD476/476A APPLICATIONS For low frequency power amplifier power switching applications PINNING PIN DESCRIPTION1 Emitter Collector;connected to 2 mounting base Fig.1 simplified outline (TO-220) and symbol3 BaseAbsolute maximum ratings(Tc=25) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter -70 V 2SB566 -50VCEO Collector-emitter voltage Open base V 2SB566A -60 VEBO Emitter-base voltage Open collector -5 V IC Collector current -4 A ICM Collector current-peak -8 APC Collectorl power dissipation TC=25 40 WTj Junction temperature 150 Tstg Storage temperature -55~150 JMnic Product Specification Silicon PNP Power Transistors 2SB566 2SB566A CHARACTERISTICS
