View 2sc2655 datasheet:

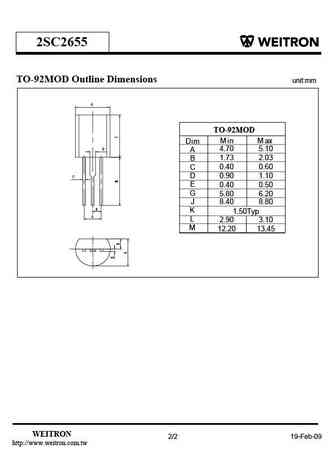

2SC2655NPN General Purpose TransistorsP b Lead(Pb)-Free1231.EMITTER3.BASE2.COLLECTORTO-92MOD ELECTRICAL CHARACTERISTICSTamb=25 unless otherwise specified Parameter Symbol Test conditions MIN TYP MAX UNITCollector-base breakdown voltage V(BR)CBO VIc=100A,IE=0 50 Collector-emitter breakdown voltage V(BR)CEO VIc=10mA,IB=0 50 Emitter-base breakdown voltage V(BR)EBO VIE=100A,IC=0 5 Collector cut-off current ICBO A VCB=50V,IE=0 1 Emitter cut-off current IEBO A VEB=5V,IC=0 1 hFE(1) VCE=2V,IC=500mA 70 240 DC current gain hFE(2) VCE=2V,IC=1.5A 40 Collector-emitter saturation voltage VCE(sat) V IC=1A,IB=0.05A 0.5 Base-emitter saturation voltage VBE(sat) V IC=1A,IB=0.05A 1.2 MHzTransition frequency f VCE=2V,IC=0.5A 100 TCollector output capacitance Cob pFVCB=10V,IE=0,f=1MHz 30 Tune on Time ton 0.1Vcc=30V
