View 2sc5570 datasheet:

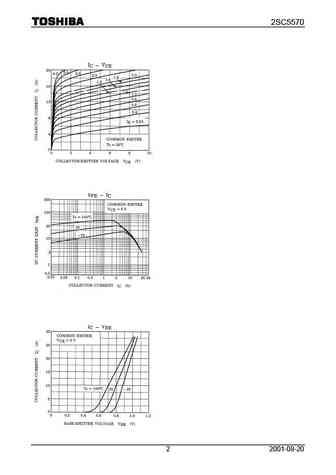

2SC5570 TOSHIBA TRANSISTOR SILICON NPN TRIPLE DIFFUSED MESA TYPE 2SC5570 HORIZONTAL DEFLECTION OUTPUT FOR HIGH Unit: mm RESOLUTION DISPLAY, COLOR TV HIGH SPEED SWITCHING APPLICATIONS High Voltage : VCBO = 1700 V Low Saturation Voltage : V = 3 V (Max.) CE (sat) High Speed : t (2) = 0.1 s (Typ.) fMAXIMUM RATINGS (Tc = 25C) CHARACTERISTIC SYMBOL RATING UNITCollector-Base Voltage VCBO 1700 VCollector-Emitter Voltage VCEO 800 VEmitter-Base Voltage VEBO 5 VDC IC 28 Collector Current A JEDEC Pulse ICP 56 JEITA Base Current IB 14 ACollector Power Dissipation PC 220 W TOSHIBA 2-21F2AJunction Temperature Tj 150 CWeight: 9.75 g (typ.) Storage Temperature Range Tstg -55~150 CELECTRICAL CHARACTERISTICS (Tc = 25C) CHARACTERISTIC SYMBOL TEST CONDITION MIN TYP. MAX UNITCollector Cut-off Current ICBO VCB = 1700 V, IE =
