View 2sc945m datasheet:

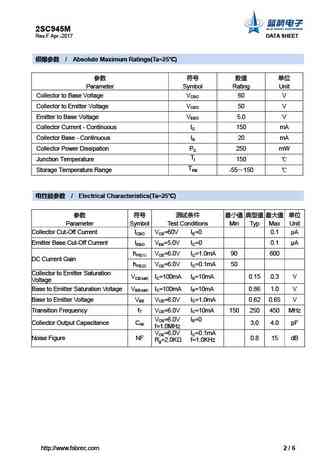

2SC945M Rev.F Apr.-2017 DATA SHEET / Descriptions SOT-23 NPN Silicon NPN transistor in a SOT-23 Plastic Package. / Features ,High voltage, excellent hFE linearity. / Applications General power amplifier application and low speed switching. / Equivalent Circuit / Pinning 3 1 2 PIN1Base PIN 2Emitter PIN 3Collector / hFE Classifications & Marking hFE Classifications R Q P KSymbol hFE Range 90180 135270 200400 300600 Marking HCRR HCRQ HCRP HCRKhttp://www.fsbrec.com 1 / 6 2SC945M Rev.F Apr.-2017 DATA SHEET / Absolute Maximum Ratings(Ta=25) Parameter Symbol Rating Unit Collector to Base Voltage V
