View 2sd1506 datasheet:

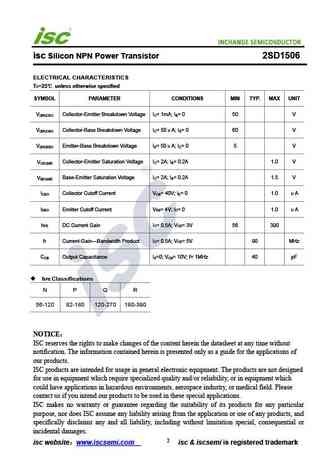

isc Silicon NPN Power Transistor 2SD1506DESCRIPTIONLow Collector Saturation Voltage: V = 1.0V(Max)@I = 2ACE(sat) CWide Area of Safe OperationComplement to Type 2SB1065Minimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned for low frequency power amplifier applications.ABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNITV Collector-Base Voltage 60 VCBOV Collector-Emitter Voltage 50 VCEOV Emitter-Base Voltage 5 VEBOI Collector Current-Continuous 3 ACI Collector Current-Peak 4.5 ACMTotal Power Dissipation1.2@ T =25aP WCTotal Power Dissipation10@ T =25CT Junction Temperature 150 JT Storage Temperature Range -55~150 stg1isc websitewww.iscsemi.com isc & iscsemi is registered trademarkisc Silicon NPN Power Transistor 2SD1506ELECT
