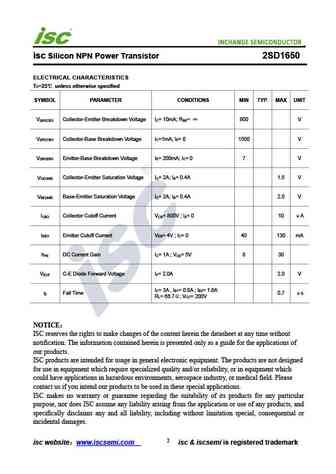

isc Silicon NPN Power Transistor 2SD1650DESCRIPTIONHigh Breakdown Voltage-: V = 1500V (Min)CBOHigh Switching SpeedHigh ReliabilityBuilt-in Damper DiodeMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned for horizontal output applicaitionsABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNITV Collector-Base Voltage 1500 VCBOV Collector-Emitter Voltage 800 VCEOV Emitter-Base Voltage 6 VEBOI Collector Current- Continuous 3.5 ACI Collector Current-Peak 10 ACPCollector Power DissipationP 50 WC@ T =25CT Junction Temperature 150 JT Storage Temperature Range -55~150 stg1isc websitewww.iscsemi.com isc & iscsemi is registered trademarkisc Silicon NPN Power Transistor 2SD1650ELECTRICAL CHARACTERISTICST =25 unless otherwise specifiedC
