View 2sd1650 datasheet:

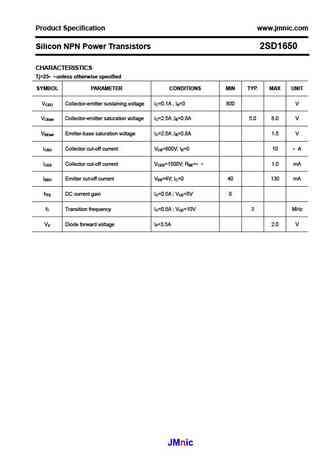

Product Specification www.jmnic.com Silicon NPN Power Transistors 2SD1650 DESCRIPTION With TO-3PML package Built-in damper diode High breakdown voltage High speed switching APPLICATIONS For color TV horizontal output applications PINNING PIN DESCRIPTION1 Base 2 Collector3 EmitterFig.1 simplified outline (TO-3PML) and symbol ABSOLUTE MAXIMUM RATINGS AT Tc=25 SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter 1500 V VCEO Collector-emitter voltage Open base 800 VEBO Emitter-base voltage Open collector 6 V IC Collector current 3.5 A PC Collector power dissipation TC=25 50 W Junction temperature 150 Tj Tstg Storage temperature -55~150 JMnic Product Specification www.jmnic.com Silicon NPN Power Transistors 2SD1650 CHARACTERISTICS Tj=25 unless otherwise specified SYMBOL PARAM
