View 2sd1651 datasheet:

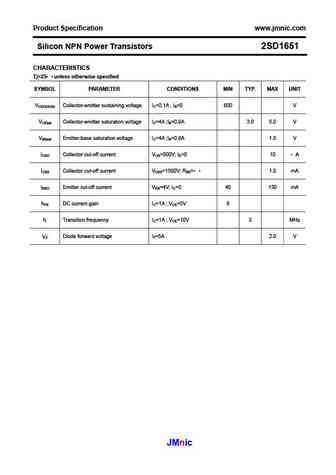

Product Specification www.jmnic.comSilicon NPN Power Transistors 2SD1651 DESCRIPTION With TO-3PML package Built-in damper diode High breakdown voltage High speed switching APPLICATIONS For color TV horizontal output applications PINNING PIN DESCRIPTION1 Base 2 Collector3 EmitterFig.1 simplified outline (TO-3PML) and symbol ABSOLUTE MAXIMUM RATINGS AT Tc=25 SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter 1500 V VCEO Collector-emitter voltage Open base 800 VEBO Emitter-base voltage Open collector 6 V IC Collector current 5 A PC Collector power dissipation TC=25 60 W Junction temperature 150 Tj Tstg Storage temperature -55~150 JMnicProduct Specification www.jmnic.com Silicon NPN Power Transistors 2SD1651 CHARACTERISTICS Tj=25 unless otherwise specified SYMBOL PARAMETER
