View 2sd1655 datasheet:

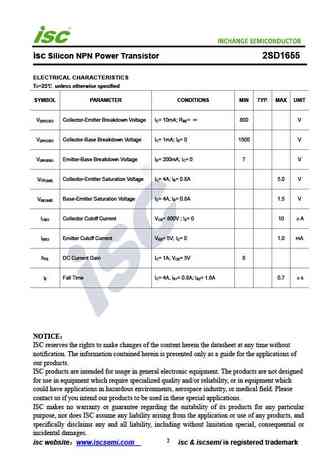

isc Silicon NPN Power Transistor 2SD1655DESCRIPTIONHigh Breakdown Voltage-: V = 1500V (Min)CBOHigh Switching SpeedHigh ReliabilityMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSColor TV horizontal deflection output applications.ABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNITV Collector-Base Voltage 1500 VCBOV Collector-Emitter Voltage 800 VCEOV Emitter-Base Voltage 6 VEBOI Collector Current- Continuous 5 ACI Collector Current-Pulse 16 ACPCollector Power DissipationP 60 WC@ T =25CT Junction Temperature 150 JT Storage Temperature Range -55~150 stg1isc websitewww.iscsemi.com isc & iscsemi is registered trademarkisc Silicon NPN Power Transistor 2SD1655ELECTRICAL CHARACTERISTICST =25 unless otherwise specifiedCSYMBOL PARAMETER
