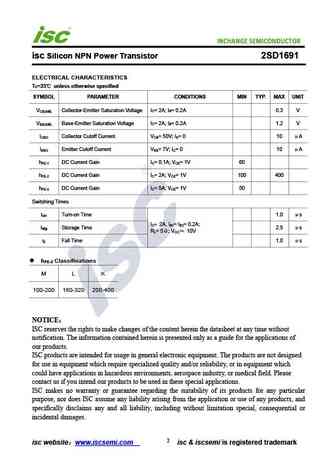

isc Silicon NPN Power Transistor 2SD1691DESCRIPTIONHigh Collector Current -I = 5ACLow Collector Saturation Voltage: V = 0.3V(Max.)@ I = 2ACE(sat) CComplement to Type 2SB1151Minimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned for use in DC-DC converter, or driver of solenoidor motor.ABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNITV Collector-Base Voltage 60 VCBOV Collector-Emitter Voltage 60 VCEOV Emitter-Base Voltage 7 VEBOI Collector Current-Continuous 5 ACI Collector Current-Pulse 8 ACPI Base Current-Continuous 1 ABCollector Power Dissipation20@ T =25CP WCCollector Power Dissipation1.3@ T =25aT Junction Temperature 150 JStorage Temperature Range -55~150 Tstg1isc websitewww.iscsemi.com isc & iscsemi is registe
