View 2sd1835 datasheet:

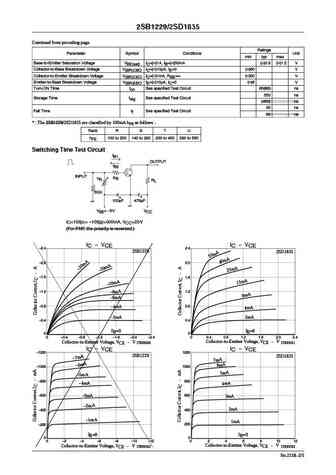

Ordering number:ENN2158APNP/NPN Epitaxial Planar Silicon Transistor2SB1229/2SD1835Driver ApplicationsApplications Package Dimensions Voltage regulators, relay drivers, lamp drivers,unit:mmelectrical equipment.2003B[2SB1229/2SD1835]5.0Features4.04.0 Adoption of FBET, MBIT processes. Large current capacity. Low collector-to-emitter saturation voltage.0.45 Fast switching time.0.50.440.451 2 31 : Emitter2 : Collector( ) : 2SB12293 : BaseSANYO : NP1.3 1.3SpecificationsAbsolute Maximum Ratings at Ta = 25CParameter Symbol Conditions Ratings UnitCollector-to-Base Voltage VCBO ()60 VCollector-to-Emitter Voltage VCEO ()50 VEmitter-to-Base Voltage VEBO ()6 VCollector Current IC ()2 ACollector Current (Pulse) ICP ()3 ACollector Dissipation PC 0.75 WCJunction Temperature Tj 150CSto
