View 2sd2491 2sd2492 datasheet:

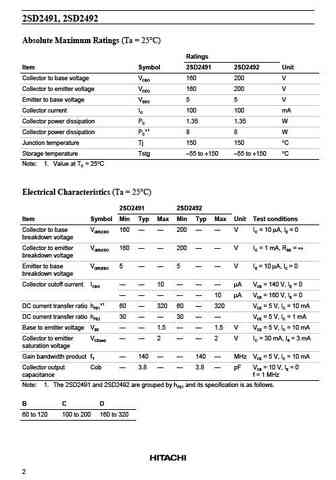

2SD2491, 2SD2492Silicon NPN EpitaxialApplicationLow frequency high voltage amplifierFeatures Isolated packageTO-126FMOutlineTO-126FM1. Emitter2. Collector3. Base1232SD2491, 2SD2492Absolute Maximum Ratings (Ta = 25C)RatingsItem Symbol 2SD2491 2SD2492 UnitCollector to base voltage VCBO 160 200 VCollector to emitter voltage VCEO 160 200 VEmitter to base voltage VEBO 55VCollector current IC 100 100 mACollector power dissipation PC 1.35 1.35 WCollector power dissipation PC*1 88WJunction temperature Tj 150 150 CStorage temperature Tstg 55 to +150 55 to +150 CNote: 1. Value at TC = 25 CElectrical Characteristics (Ta = 25C)2SD2491 2SD2492Item Symbol Min Typ Max Min Typ Max Unit Test conditionsCollector to base V(BR)CBO 160 200 V IC = 10 A, IE = 0breakdown voltageCollector to emitter V(BR
