View 2sd313 datasheet:

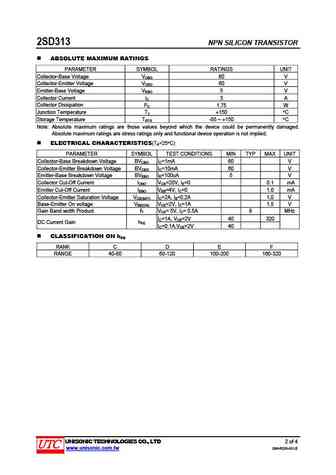

UNISONIC TECHNOLOGIES CO., LTD 2SD313 NPN SILICON TRANSISTOR NPN EPITAXIAL PLANAR TRANSISTOR DESCRIPTION The UTC 2SD313 is designed for use in general purpose amplifier and switching applications. ORDERING INFORMATION Ordering Number Pin AssignmentPackage Packing Lead Free Halogen Free 1 2 3 2SD313L-x-TA3-T 2SD313G-x-TA3-T TO-220 B C E Tube2SD313L-x-TF3-T 2SD313G-x-TF3-T TO-220F B C E Tubewww.unisonic.com.tw 1 of 4 Copyright 2012 Unisonic Technologies Co., Ltd QW-R203-001,E 2SD313 NPN SILICON TRANSISTOR ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL RATINGS UNITCollector-Base Voltage VCBO 60 VCollector-Emitter Voltage VCEO 60 VEmitter-Base Voltage VEBO 5 VCollector Current IC 3 ACollector Dissipation PC 1.75 WJunction Temperature TJ +150 C Storage Temperature TSTG -55 ~ +150 C Note: Absolute maximum ratings are those values b
