View 2sd882d datasheet:

2sd882d2sd882d

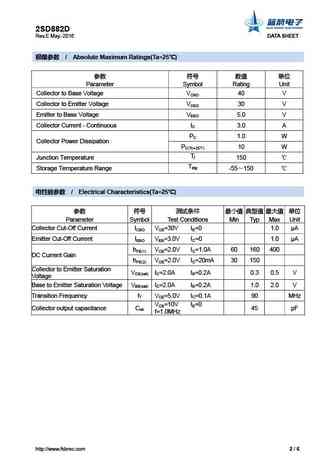

2SD882D Rev.E May.-2016 DATA SHEET / Descriptions TO-252 NPN Silicon NPN transistor in a TO-252 Plastic Package. / Features V ,h CE(sat) FELow saturation voltage,excellent hFE linearity and high hFE. / Applications 3 ,,Output stage of 3 watts audio amplifier, voltage regulator, DC-DC converter and relay driver. / Equivalent Circuit / Pinning 4 1 2 3 PIN1Base PIN 2,4Collector PIN 3Emitter / hFE Classifications & Marking hFE Classifications R Q P ESymbol hFE Range 60120 100200 160320 200400 http://www.fsbrec.com 1 / 6 2SD882D Rev.E May.-2016 DATA SHEET / Absolute Maximum Ratings
