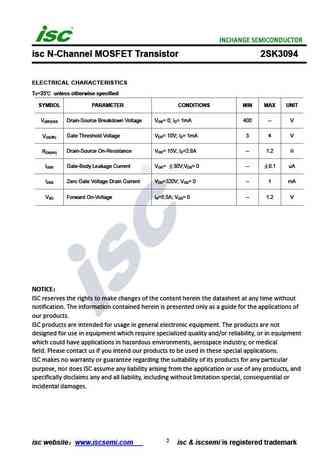

View 2sk3094 datasheet:

2sk30942sk3094

isc N-Channel MOSFET Transistor 2SK3094FEATURESDrain Current : I = 5.5A@ T =25D CDrain Source Voltage: V =400V(Min)DSSStatic Drain-Source On-Resistance: R = 1.2(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONmotor drive, DC-DC converter, power switchand solenoid drive.ABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNITV Drain-Source Voltage 400 VDSSV Gate-Source Voltage-Continuous 30 VGSI Drain Current-Continuous 5.5 ADI Drain Current-Single Pluse 22 ADMP Total Dissipation @T =25 55 WD C.75Max. Operating Junction Temperature -55~150 TJStorage Temperature -55~150 TstgTHERMAL CHARACTERISTICSSYMBOL PARAMETER MAX UNIT/WR Thermal Resistance, Junction to Case 2.27th j-c1isc websitewww.iscs
