View 2sk3225 datasheet:

2sk32252sk3225

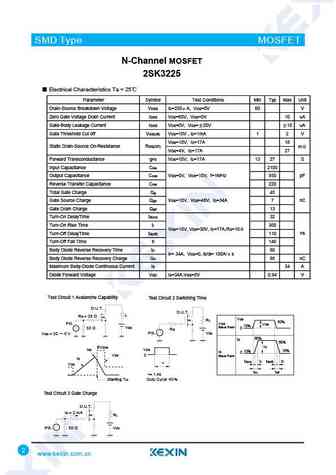

SMD Type MOSFETN-Channel MOSFET2SK3225TO-252Unit: mm6.50+0.15-0.15+0.12.30 -0.15.30+0.2-0.2 +0.80.50 -0.7 Features VDS (V) = 60V 4 ID = 34 A (VGS = 10V) RDS(ON) 18m (VGS = 10V)0.1270.80+0.1 max-0.1 RDS(ON) 27m (VGS = 4V) Low input capacitanceCiss = 2100 pF TYP 1 Gate2 Drain2.3 0.60+ 0.1- 0.13 Source+0.154.60 -0.154 Drain Absolute Maximum Ratings Ta = 25Parameter Symbol Rating Unit Drain-Source Voltage VDS 60V Gate-Source Voltage VGS(AC) 20 Gate-Source Voltage VGS(DC) +20,-10 Continuous Drain Current ID 34A Pulsed Drain Current (Note.1) IDM 136 Single Avalanche Current (Note.2) IAS 15 Single Avalanche Energy (Note.2) EAS 22 mJ40 Tc = 25 Power Dissipation PD W2 Ta = 25 Junction Temperature TJ 150 Storage Temperature Range Tstg -55 to 150
