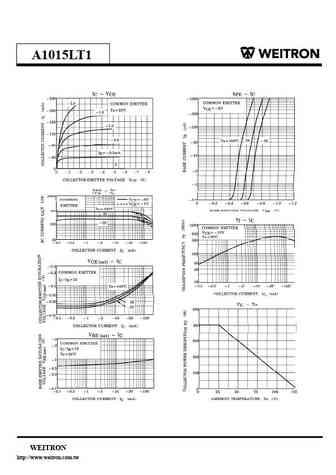

View a1015lt1 datasheet:
A1015LT1 A1015LT1 TRANSISTOR (PNP) * G Lead(Pb)-FreeSOT-23 1. BASE FEATURES 2. EMITTER 3. COLLECTOR Power dissipation PCM: 0.2 W (Tamb=25 ) 2. 4 Collector current 1. 3 ICM: -0.15 A Collector-base voltage V(BR)CBO: -50 V Operating and storage junction temperature range Unit: mm TJ, Tstg: -55 to +150 ELECTRICAL CHARACTERISTICS (Tamb=25 unless otherwise specified) Parameter Symbol Test conditions MIN TYP MAX UNIT Collector-base breakdown voltage V V(BR)CBO Ic= -100A, I =0 -50ECollector-emitter breakdown voltage V Ic= -0.1mA, I =0 - 50 V(BR)CEO B-Emitter-base breakdown voltage V(BR) I = -10A, I =0 5 VEBO E CCollector cut-off current ICBO VCB=-50V , IE=0 -0.1A Collector cut-off current I V = -50V , I =0 -0.1CEO CE B A Emitter cut-off current I V =- 5V , I =0 -0.1EBO EB C A DC current gain H V =
