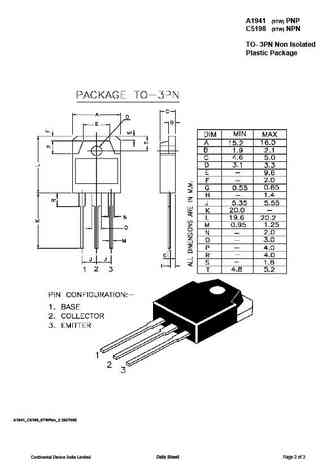

Continental Device India LimitedAn ISO/TS 16949, ISO 9001 and ISO 14001 Certified CompanyPOWER TRANSISTORS A1941 (9TW) PNPC5198 (9TW) NPNTO- 3PN Non IsolatedPlastic PackagePower Amplifier Applications.ABSOLUTE MAXIMUM RATINGS (Ta=25C unless specified otherwise ) VALUEDESCRIPTION SYMBOL UNITCollector Base Voltage VCBO 160 VCollector Emitter Voltage VCEO 160 VEmitter Base Voltage VEBO 5.0 VCollector Current IC 10 ABase Current IB 1 ATotal Power Dissipation up to Tc=25C Ptot 100 WJunction Temperature Tj 150 CStorage Temperature Tstg - 55 to +150 CELECTRICAL CHARACTERISTICS (Ta=25C unless specified otherwise)TEST CONDITION MIN TYP MAXDESCRIPTION SYMBOL UNITCollector Cut Off Current ICBO VCB=160V, IE=0 5.0 IEBO VEB =5V, IC =0Emitter Cut Off Current 5.0 VCEO IC=1mA, IB =0Collector Emitter Voltage 160 VVCE (sat) IC=7A, IB
