View ad-ss8550-l ad-ss8550-h ad-ss8550-j datasheet:

ad-ss8550-l_ad-ss8550-h_ad-ss8550-jad-ss8550-l_ad-ss8550-h_ad-ss8550-j

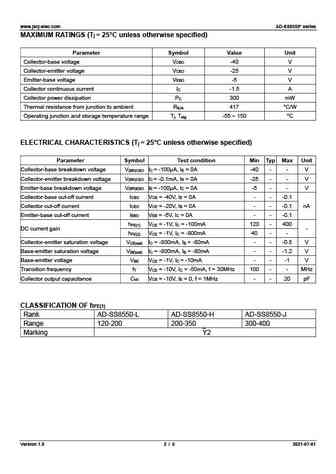

www.jscj-elec.com AD-SS8550* series JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD. AD-SS8550* series Plastic-Encapsulated Transistor AD-SS8550* series Transistor (PNP) FEATURES High Collector Current Complimentary to AD-SS8050 AEC-Q101 qualified Version 1.0 1 / 6 2021-07-01 www.jscj-elec.com AD-SS8550* series MAXIMUM RATINGS (T = 25C unless otherwise specified) j Parameter Symbol Value Unit Collector-base voltage V -40 V CBOCollector-emitter voltage V -25 V CEOEmitter-base voltage V -5 V EBOCollector continuous current I -1.5 A CCollector power dissipation P 300 mW CThermal resistance from junction to ambient R 417 C/W JAOperating junction and storage temperature range T , T -55 ~ 150 C j stgELECTRICAL CHARACTERISTICS (T = 25C unless otherwise specified) j Parameter Symbol Test condition Min Typ Max U
