View am2n7002 datasheet:

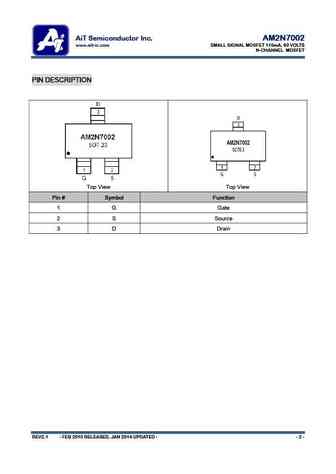

AiT Semiconductor Inc. AM2N7002 www.ait-ic.com SMALL SIGNAL MOSFET 115mA, 60 VOLTS N-CHANNEL MOSFET DESCRIPTION FEATURES Available in SOT-23 and SC70-3 packages. ESD Protected: 1000V Available in SOT-23 and SC70-3 packages ORDERING INFORMATION N CHANNEL MOSFET Package Type Part Number AM2N7002E3R SOT-23 E3 AM2N7002E3VR SC70-3 AM2N7002C3R C3 (SOT-323) AM2N7002C3VR V: Halogen free Package Note R: Tape & Reel SPQ: 3,000pcs/Reel AiT provides all RoHS products Simplified Schematic Suffix V means Halogen free Package REV2.1 - FEB 2010 RELEASED, JAN 2014 UPDATED - - 1 - AiT Semiconductor Inc. AM2N7002 www.ait-ic.com SMALL SIGNAL MOSFET 115mA, 60 VOLTS N-CHANNEL MOSFET PIN DESCRIPTION Top View Top View Pin # Symbol Function 1 G Gate 2 S Source 3 D Drain REV2.1 - FEB 2010 RELEASED, JAN 2014 UPDATED - - 2 - AiT Se
