View ap2n7002k-hf datasheet:

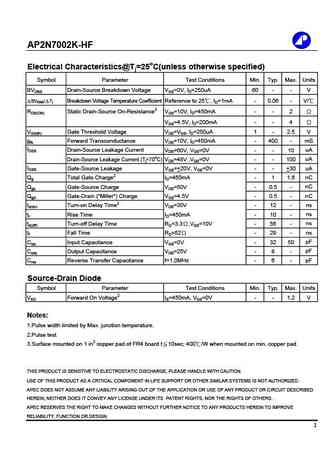

AP2N7002K-HFHalogen-Free ProductAdvanced Power N-CHANNEL ENHANCEMENT MODEElectronics Corp. POWER MOSFET Simple Drive Requirement BVDSS 60VD Small Package Outline RDS(ON) 2 Surface Mount Device ID 450mAS RoHS Compliant & Halogen-FreeSOT-23GDescriptionDAdvanced Power MOSFETs utilized advanced processing techniques toachieve the lowest possible on-resistance, extremely efficient andcost-effectiveness device.GThe SOT-23 package is universally used for all commercial-industrialapplications. SAbsolute Maximum RatingsSymbol Parameter Rating UnitsVDS Drain-Source Voltage 60 VVGS Gate-Source Voltage +20 VContinuous Drain Current3, VGS @ 10VID@TA=25 450 mAContinuous Drain Current3, VGS @ 10VID@TA=70 360 mAIDM Pulsed Drain Current1 950 mAPD@TA=25 Total Power Dissipation 0.7 W Linear Derating Factor 0.005 W/TS
