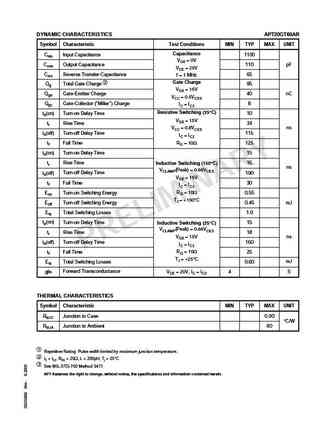

View apt20gt60ar datasheet:
APT20GT60AR600V 30AThunderbolt IGBTTO-3The Thunderbolt IGBT is a new generation of high voltage power IGBTs.(TO-204AE)Using Non-Punch Through Technology the Thunderbolt IGBT offers superiorruggedness and ultrafast switching speed. Low Forward Voltage Drop High Freq. Switching to 150KHzC Low Tail Current Ultra Low Leakage Current Avalanche Rated RBSOA and SCSOA RatedG Hermetic PackageEMAXIMUM RATINGS All Ratings: TC = 25C unless otherwise specified.Symbol Parameter APT20GT60AR UNIT600VCES Collector-Emitter VoltageVCGR 600Collector-Gate Voltage (RGE = 20KW)VoltsVEC Emitter-Collector Voltage 15VGE Gate-Emitter Voltage 20IC1 30Continuous Collector Current @ TC = 25C20IC2 Continuous Collector Current @ TC = 100CAmpsICM 60Pulsed Collector Current 1 @ TC = 25CILM 40RBSOA Clamped Inducti
