View bc107-bc108-bc109 datasheet:

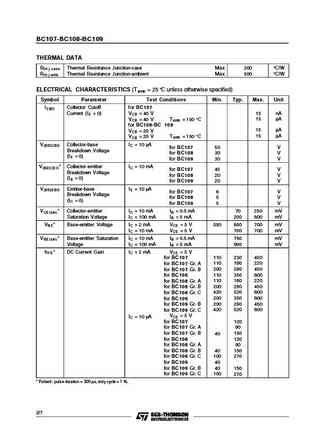

BC107BC108-BC109LOW NOISE GENERAL PURPOSE AUDIO AMPLIFIERSDESCRIPTIONThe BC107, BC108 and BC109 are silicon planarepitaxial NPN transistors in TO-18 metal case.Theyare suitable for use in driver stages, low noise inputstages and signal processing circuits of televisionreceivers. The complementary PNP types are re-spectively the BC177, BC178 and BC179.TO-18INTERNAL SCHEMATIC DIAGRAMABSOLUTE MAXIMUM RATINGSValueSymbol Parameter UnitBC107 BC108 BC109VCBO Collector-base Voltage (IE =0) 50 30 30 VVCEO Collector-emitter Voltage (IB = 0) 45 20 20 VVEBO Emitter-base Voltage (IC =0) 6 5 5 VIC Collector Current 100 mAPto t Total Power Dissipation 0.3 Wat T 25 Camb0.75 Wat Tcase 25 CTstg Storage Temperature 55 to 175 CT Junction Temperature 175 CjJanuary 1989 1/7BC107-BC108-BC109THERMAL DATARth j-case Thermal Resi
