View bc237 bc238 bc239 datasheet:

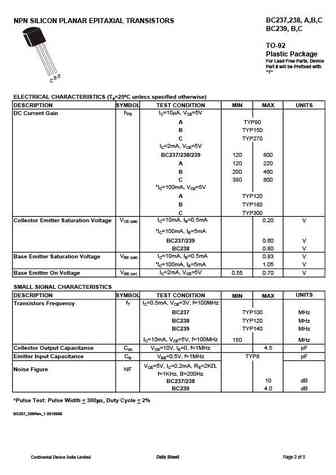

Continental Device India LimitedAn ISO/TS 16949, ISO 9001 and ISO 14001 Certified CompanyBC237,238, A,B,CNPN SILICON PLANAR EPITAXIAL TRANSISTORSBC239, B,CTO-92Plastic PackageFor Lead Free Parts, Device Part # will be Prefixed with "T"EBCAmplifier TransistorsABSOLUTE MAXIMUM RATINGS (Ta=25C)DESCRIPTION SYMBOL BC237 BC238 BC239 UNITSCollector Emitter Voltage VCEO 45 25 25 VCollector Emitter Voltage VCES 50 30 30 VEmitter Base Voltage VEBO 6.0 5.0 5.0 VCollector Current Continuous IC 100 mAPower Dissipation at Ta=25C PD 350 mWDerate Above 25C 2.8 mW/CPower Dissipation at Tc=25C PD 1.0 WDerate Above 25C 8.0 mW/COperating And Storage Junction Tj, Tstg - 55 to +150 CTemperature RangeTHERMAL RESISTANCEJunction to Ambient in free air Rth (j-a) 357 C/WJunction to Case Rth (j-c) 125 C/WELECTRICAL CHARACTERISTICS (T
