View bc237 bc238 bc239 datasheet:

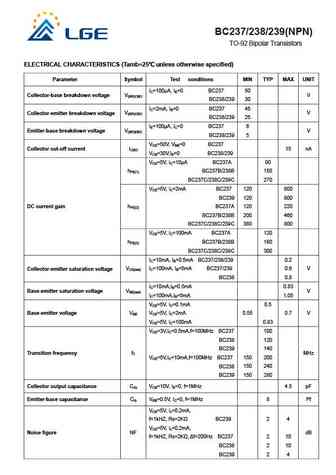

BC237/238/239(NPN)TO-92 Bipolar TransistorsTO-92 1. COLLECTOR 2. BASE 3. EMITTER Features Amplifier dissipation NPN Silicon MAXIMUM RATINGS (TA=25 unless otherwise noted) Symbol Parameter Value UnitsDimensions in inches and (millimeters)Collector-Emitter Voltage BC237 45 VCEO V BC238/239 25 Emitter-Base Voltage BC237 6 VEBO V BC238/239 5 IC Collector Current -Continuous 0.1 A Collector Power Dissipation 350 PC mW Thermal Resistance, RJA 357 /W Junction to Ambient Thermal Resistance, Junction to CaseRJC 125 /W Junction Temperature 150 Tj Storage Temperature -55-150 Tstg BC237/238/239(NPN)TO-92 Bipolar TransistorsELECTRICAL CHARACTERISTICS (Tamb=25 unless otherwise specified) Parameter Symbol Test conditions MIN TYP MAX UNITIC=100A, IE=0 BC237 50 Collector-base breakdown voltage V(BR)
