View bc337 3 datasheet:

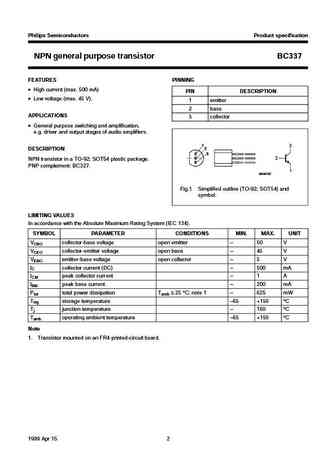

DISCRETE SEMICONDUCTORSDATA SHEETbook, halfpageM3D186BC337NPN general purpose transistor1999 Apr 15Product specificationSupersedes data of 1997 Mar 10Philips Semiconductors Product specificationNPN general purpose transistor BC337FEATURES PINNING High current (max. 500 mA)PIN DESCRIPTION Low voltage (max. 45 V).1 emitter2 baseAPPLICATIONS3 collector General purpose switching and amplification,e.g. driver and output stages of audio amplifiers.1handbook, halfpage32DESCRIPTION32NPN transistor in a TO-92; SOT54 plastic package.PNP complement: BC327.1MAM182Fig.1 Simplified outline (TO-92; SOT54) andsymbol.LIMITING VALUESIn accordance with the Absolute Maximum Rating System (IEC 134).SYMBOL PARAMETER CONDITIONS MIN. MAX. UNITVCBO collector-base voltage open emitter - 50 VVCEO collector-emitter voltage open
