View bc546 bc547 3 datasheet:

bc546_bc547_3bc546_bc547_3

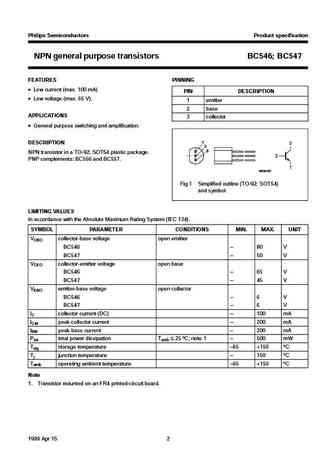

DISCRETE SEMICONDUCTORSDATA SHEETbook, halfpageM3D186BC546; BC547NPN general purpose transistors1999 Apr 15Product specificationSupersedes data of 1997 Mar 04Philips Semiconductors Product specificationNPN general purpose transistors BC546; BC547FEATURES PINNING Low current (max. 100 mA)PIN DESCRIPTION Low voltage (max. 65 V).1 emitter2 baseAPPLICATIONS3 collector General purpose switching and amplification.1DESCRIPTION handbook, halfpage323NPN transistor in a TO-92; SOT54 plastic package.2PNP complements: BC556 and BC557.1MAM182Fig.1 Simplified outline (TO-92; SOT54)and symbol.LIMITING VALUESIn accordance with the Absolute Maximum Rating System (IEC 134).SYMBOL PARAMETER CONDITIONS MIN. MAX. UNITVCBO collector-base voltage open emitterBC546 - 80 VBC547 - 50 VVCEO collector-emitter voltage open base
