View bc549 bc550 datasheet:

bc549_bc550bc549_bc550

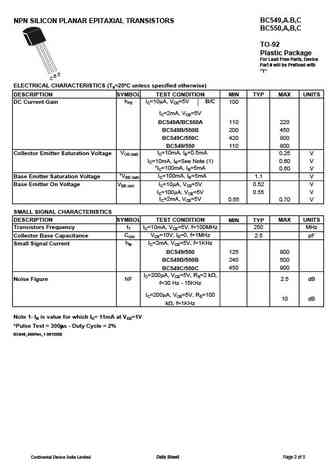

Continental Device India LimitedAn ISO/TS 16949, ISO 9001 and ISO 14001 Certified CompanyBC549,A.B,CNPN SILICON PLANAR EPITAXIAL TRANSISTORSBC550,A,B,CTO-92Plastic PackageFor Lead Free Parts, Device Part # will be Prefixed with "T"EBCLow Noise TransistorsABSOLUTE MAXIMUM RATINGS (Ta=25C)DESCRIPTION SYMBOL BC549 BC550 UNITSCollector Emitter Voltage VCEO 30 45 VCollector Base Voltage VCBO 30 50 VEmitter Base Voltage VEBO 5.0 VCollector Current Continuous IC 100 mAPower Dissipation at Ta=25C PD 625 mWDerate Above 25C5.0 mW/CPower Dissipation at Tc=25C PD 1.5 WDerate Above 25C12 mW/COperating And Storage Junction Tj, Tstg - 55 to +150 CTemperature RangeTHERMAL RESISTANCEJunction to Case Rth (j-c) 83.3C/WJunction to Ambient in free air Rth (j-a) 200C/WELECTRICAL CHARACTERISTICS (Ta=25C unless specifie
