View bc549 bc550 3 datasheet:

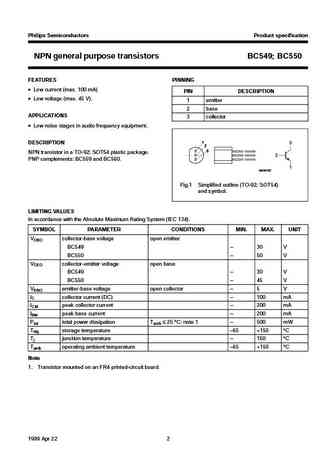

DISCRETE SEMICONDUCTORSDATA SHEETbook, halfpageM3D186BC549; BC550NPN general purpose transistors1999 Apr 22Product specificationSupersedes data of 1997 Jun 20Philips Semiconductors Product specificationNPN general purpose transistors BC549; BC550FEATURES PINNING Low current (max. 100 mA)PIN DESCRIPTION Low voltage (max. 45 V).1 emitter2 baseAPPLICATIONS3 collector Low noise stages in audio frequency equipment.1DESCRIPTION handbook, halfpage323NPN transistor in a TO-92; SOT54 plastic package.2PNP complements: BC559 and BC560.1MAM182Fig.1 Simplified outline (TO-92; SOT54)and symbol.LIMITING VALUESIn accordance with the Absolute Maximum Rating System (IEC 134).SYMBOL PARAMETER CONDITIONS MIN. MAX. UNITVCBO collector-base voltage open emitterBC549 - 30 VBC550 - 50 VVCEO collector-emitter voltage open bas
