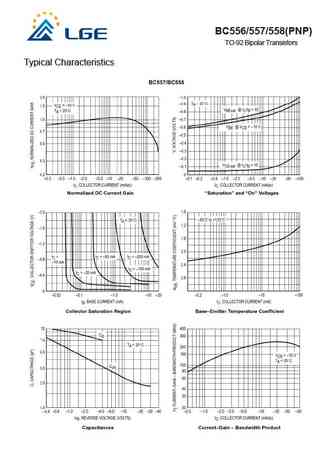

BC556/557/558(PNP)TO-92 Bipolar TransistorsTO-92 1. COLLECTOR 2. BASE 3. EMITTER Features High Voltage Complement to BC546/BC547/BC548 MAXIMUM RATINGS (TA=25 unless otherwise noted) Symbol Parameter Value Units Collector-Base Voltage BC556 -80 VCBO BC557 -50 V BC558 -30-65 -45 V VCEO Collector-Emitter Voltage -30 Dimensions in inches and (millimeters)VEBO -5 VEmitter-Base Voltage IC Collector Current -Continuous -100 mA PC Collector Power Dissipation 625 mW TJ Junction Temperature 150 Tstg Storage Temperature -55-150 ELECTRICAL CHARACTERISTICS (Tamb=25 unless otherwise specified) Parameter Symbol Test conditions MIN TYP MAX UNITCollector-base breakdown voltage BC556 -80 BC557 VCBO IC= -100A, IE=0 -50 V BC558 -30 Collector-emitter breakdown voltage BC556 -65 BC557 VCEO IC= -2mA , IB=0 -45 V BC558
