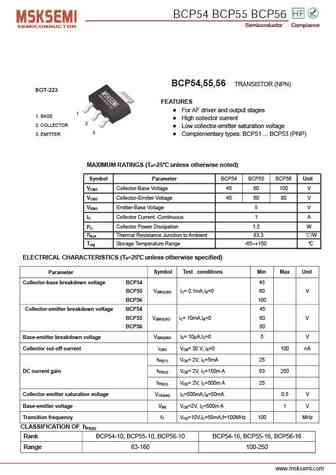

www.msksemi.comBCP54 BCP55 BCP56Semiconductor CompianceSemiconductor Compiance BCP54,55,56 TRANSISTOR (NPN) SOT-223 FEATURES For AF driver and output stages 11. BASE High collector current 22. COLLECTOR Low collector-emitter saturation voltage 33. EMITTER Complementary types: BCP51 ... BCP53 (PNP) MAXIMUM RATINGS (Ta=25 unless otherwise noted) Symbol Parameter BCP54 BCP55 BCP56 UnitVCBO Collector-Base Voltage 45 60 100 V VCEO Collector-Emitter Voltage 45 60 80 VVEBO Emitter-Base Voltage 5 V IC Collector Current -Continuous 1 A PC Collector Power Dissipation 1.5 W RJA Thermal Resistance Junction to Ambient 83.3 /W Tstg Storage Temperature Range -65~+150 ELECTRICAL CHARACTERISTICS (Ta=25 unless otherwise specified) Parameter Symbol Test conditions Min Max Unit Collector-base breakdown voltage BCP54 45 BC
