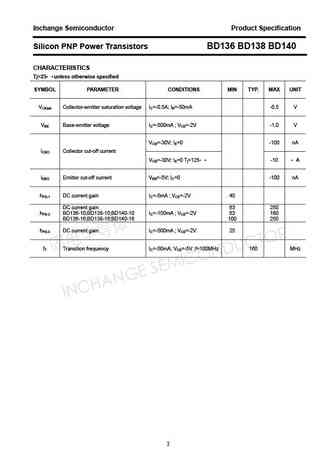

Inchange Semiconductor Product Specification Silicon PNP Power Transistors BD136 BD138 BD140 DESCRIPTION With TO-126 package High current Complement to type BD135/137/139APPLICATIONS Driver stages in high-fidelity amplifiers and television circuits PINNING PIN DESCRIPTION1 Emitter Collector;connected to 2 mounting base 3 BaseAbsolute maximum ratings (Ta=25) SYMBOL PARAMETER CONDITIONS VALUE UNITBD136 -45VCBO Collector-base voltage BD138 Open emitter -60 V BD140 -100 BD136 -45VCEO Collector-emitter voltage BD138 Open base -60 V BD140 -100 VEBO Emitter -base voltage Open collector -5 V IC Collector current (DC) -1.5 A ICM Collector current-Peak -2 AIBM Base current-Peak -1 APt Total power dissipation Tmb70 8 WTj Junction temperature 150 Tstg Storage temperature -65~150 Tamb Operating ambient tempera
