View bd136 bd138 bd140 datasheet:

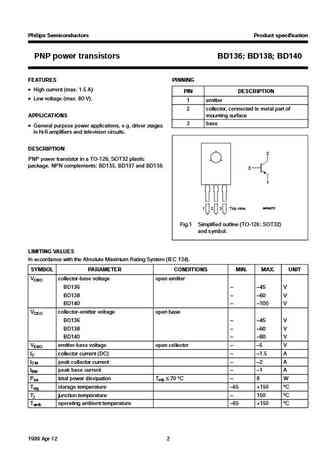

DISCRETE SEMICONDUCTORSDATA SHEETok, halfpageM3D100BD136; BD138; BD140PNP power transistors1999 Apr 12Product specificationSupersedes data of 1997 Mar 26Philips Semiconductors Product specificationPNP power transistors BD136; BD138; BD140FEATURES PINNING High current (max. 1.5 A)PIN DESCRIPTION Low voltage (max. 80 V).1 emitter2 collector, connected to metal part ofAPPLICATIONS mounting surface3 base General purpose power applications, e.g. driver stagesin hi-fi amplifiers and television circuits.handbook, halfpageDESCRIPTION2PNP power transistor in a TO-126; SOT32 plasticpackage. NPN complements: BD135, BD137 and BD139.31MAM272Top view1 2 3Fig.1 Simplified outline (TO-126; SOT32)and symbol.LIMITING VALUESIn accordance with the Absolute Maximum Rating System (IEC 134).SYMBOL PARAMETER CONDITIONS MIN. MAX.
