View bdx33-bdx34 datasheet:

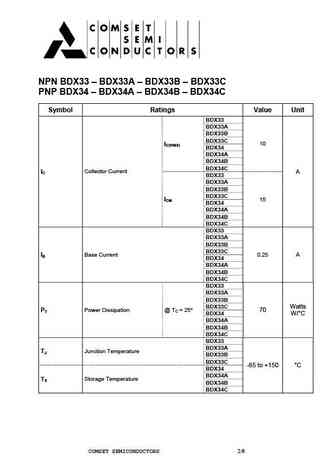

NPN BDX33 BDX33A BDX33B BDX33C PNP BDX34 BDX34A BDX34B BDX34C COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS The BDX33B, BDX33B and BDX33C are silicon epitaxial-base NPN power transistors in monolithic Darlington configuration and are mounted in Jedec TO-220 plastic package. They are intented for use in power linear and switching applications. The complementary PNP types are the BDX34A, BDX34B and BDX34C respectively. ABSOLUTE MAXIMUM RATINGS Symbol Ratings Value UnitBDX33 45 BDX34 BDX33A 60 BDX34A VCEO Collector-Emitter Voltage V BDX33B 80 BDX34B BDX33C 100 BDX34C BDX33 45 BDX34 BDX33A 60 BDX34A VCEV Collector-EmitterVoltage IB=0 V BDX33B 80 BDX34B BDX33C 100 BDX34C COMSET SEMICONDUCTORS 1/6 NPN BDX33 BDX33A BDX33B BDX33C PNP BDX34 BDX34A BDX34B BDX34C
