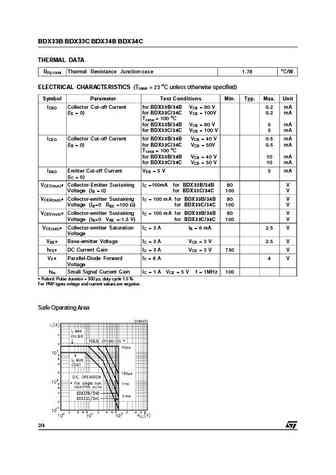

BDX33B BDX33CBDX34B BDX34C COMPLEMENTARY SILICON POWERDARLINGTON TRANSISTORS SGS-THOMSON PREFERRED SALESTYPESDESCRIPTIONThe BDX33B and BDX33C are siliconepitaxial-base NPN power transistors inmonolithic Darlington configuration and aremounted in Jedec TO-220 plastic package. Theyare intented for use in power linear and switchingapplications.32The complementary PNP types are the BDX34B1and BDX34C respectively.TO-220INTERNAL SCHEMATIC DIAGRAMR Typ. = 10 K R Typ. = 150 1 2ABSOLUTE MAXIMUM RATINGSSymbol Parameter UnitNPN BDX33B BDX33CPNP BDX34B BDX34CV Collector-Base Voltage (I = 0) 80 100 VCBO EV Collector-Emitter Voltage (I = 0) 80 100 VCEO BI Collector Current 10 ACICM Collector Peak Current 15 AIB Base Current 0.25 AP Total Dissipation at T 25 oC70 Wtot coTstg Storage Temperature -65 to 150 CoTj
