View bss138 datasheet:

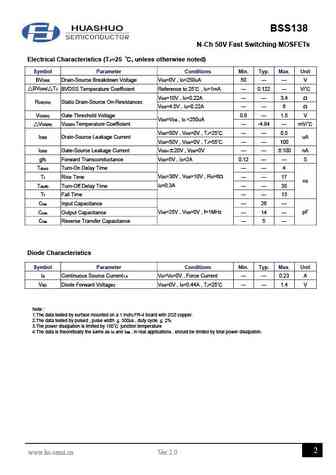

BSS138 N-Ch 50V Fast Switching MOSFETs Description Product Summary VDS 50 V The BSS138 is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and RDS(ON),max 3.4 gate charge for most of the synchronous buck converter applications. ID 230 mA The BSS138 meet the RoHS and Green Product requirement with full function reliability approved. Green Device Available SOT23 Pin Configuration Rugged and Relaible Battery Operated Systems Advanced high cell density Trench technology Absolute Maximum Ratings Symbol Parameter Rating Units VDS Drain-Source Voltage 50 V VGS Gate-Source Voltage 20 V ID@TA=25 Continuous Drain Current, VGS @ 10V1 0.23 A PD@TA=25 Total Power Dissipation3 0.36 W TSTG Storage Temperature Range -55 to 150 TJ Operating Junction Temperature Range -55 to 150 Thermal Dat
