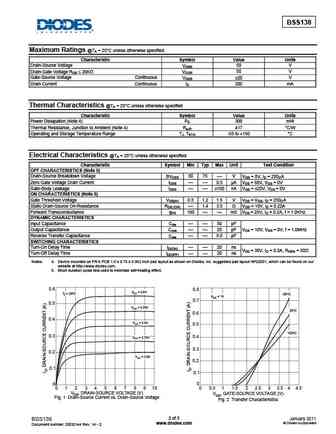

View bss138 1 datasheet:

bss138_1bss138_1

BSS138N-CHANNEL ENHANCEMENT MODE MOSFET Features Mechanical Data Low On-Resistance Case: SOT23 Low Gate Threshold Voltage Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Low Input Capacitance Moisture Sensitivity: Level 1 per J-STD-020 Fast Switching Speed Terminals: Matte Tin Finish annealed over Alloy 42 leadframe Low Input/Output Leakage (Lead Free Plating). Solderable per MIL-STD-202, Method 208 Lead, Halogen and Antimony Free, RoHS Compliant (Note 1) Terminal Connections: See Diagram "Green" Device (Note 2) Weight: 0.008 grams (approximate) Qualified to AEC-Q101 Standards for High Reliability DrainSOT23 DGateG SSource Top View Top View Equivalent CircuitOrdering Information (Note 3) Part Number Case Packaging BSS138-7-F SOT23 3000/Tape & Reel
