View bss138w datasheet:

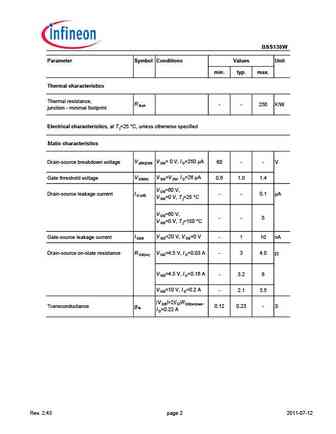

BSS138W SIPMOS Small-Signal-TransistorProduct SummaryFeaturesV 60 VDS N-channelR 3.5DS(on),max Enhancement modeI 0.28 AD Logic level dv /dt rated Pb-free lead-plating; RoHS compliantPG-SOT-323 Qualified according to AEC Q101 Halogen-free according to IEC61249-2-21Type Package Tape and Reel MarkingBSS138W PG-SOT-323 H SWs6327: 3000 /BSS138W PG-SOT-323 H SWs6433: 10000 Maximum ratings, at T =25 C, unless otherwise specifiedjParameter Symbol Conditions Value UnitI T =25 CContinuous drain current 0.28 AD AT =70 C0.22AI T =25 CPulsed drain current 1.12D,pulse AI =0.28 A, V =48 V, D DSReverse diode dv /dt dv /dt di /dt =200 A/s, 6 kV/sT =150 Cj,maxVGate source voltage 20 VGSESD class 0 (
