View bu508a datasheet:

bu508abu508a

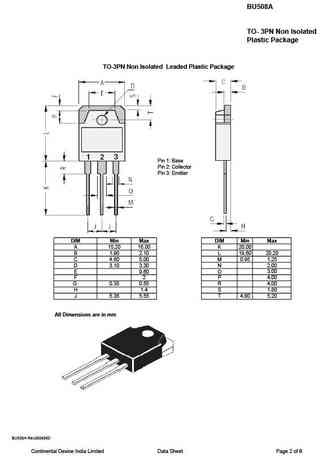

Continental Device India LimitedAn ISO/TS 16949, ISO 9001 and ISO 14001 Certified CompanyNPN TRIPLE DIFFUSED PLANAR SILICON TRANSISTOR BU508ATO- 3PN Non IsolatedPlastic PackageColor TV Horizontal Output Application (No Damper Diode)ABSOLUTE MAXIMUM RATINGS (Ta=25C Unless Specified Otherwise )DESCRIPTION SYMBOL VALUE UNITCollector -Base Voltage VCBO 1500 VCollector -Emitter Voltage VCEO 700 VEmitter Base Voltage VEBO 5.0 VCollector Current IC 5 ATotal Power Dissipation up to Tc=25 C Ptot 50 WJunction Temperature Tj 150 CStorage Temperature Tstg - 55 to +150 CELECTRICAL CHARACTERISTICS (Ta=25C Unless Specified Otherwise)DESCRIPTION SYMBOL TEST CONDITION MIN TYP MAX UNITCollector Cut off Current ICEO VCE=800V, IB=0 1.0 mACollector Cut off Current ICBO VCB =800V, IE =0 100.0 Emitter Cut off Current IEBO VEB =4V, IC =0 1.0 mACollector E
