All Transistors. Datasheet



View bu508at datasheet:

bu508atbu508at

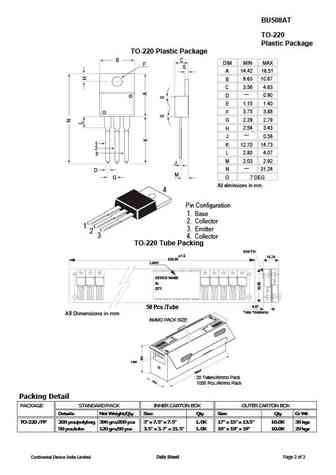

Continental Device India LimitedAn ISO/TS 16949, ISO 9001 and ISO 14001 Certified CompanyNPN SILICON PLANAR POWER TRANSISTOR BU508ATTO-220Plastic PackageHigh Voltage, High-Speed Switching TransistorIntended for use in Horizontal Deflection Circuits of Colour TelevisionsABSOLUTE MAXIMUM RATINGS DESCRIPTION SYMBOL VALUE UNITCollector Emitter Voltage VCES 1500 VVCEO Collector Emitter Voltage 700 VCollector Current (DC) IC 8 AICMCollector Current (Peak) 15 ABase Current (DC) IB 4 ABase Current (Peak) IBM 6 AReverse Base Current (DC or average -IB(AV) 100 mAover any 20 ms period)Reverse Base Current (Peak Value) *-IBM 5 APower Dissipation upto Tc=25C Ptot 60 WOperating and Storage Junction Tj, Tstg - 65 to +150 CTemperature Range*Turn off CurrentELECTRICAL CHARACTERISTICS (Tc=25C unless specified otherwise)DESCRIPTION SYMBOL TEST
