View bu508aw datasheet:

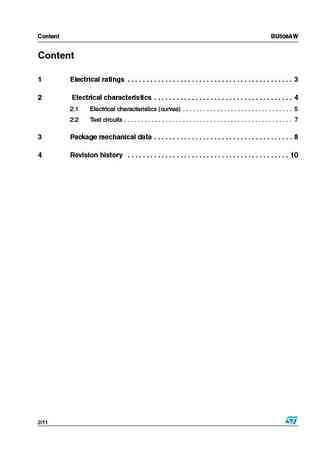

BU508AWHigh voltage NPN power transistor for standarddefinition CRT displayFeatures State-of-the-art technology: Diffused collector Enhanced generation Stable performances versus operating temperature variation Low base-drive requirement3 Tight hFE range at operating collector current21 High ruggedness TO-247 semi-insulated power packageTO-247Applications Horizontal deflection output for CRT TVFigure 1. Internal schematic diagram Switch mode power supplies for CRT TVDescriptionThe BU508AW is manufactured using diffused collector in planar technology adopting new and enhanced high voltage structure for updated performance to the horizontal deflection stage.Table 1. Device summaryOrder code Marking Package PackagingBU508AW BU508AW TO-247 TubeAugust 2007 Rev 2 1/11www.st.com 11Content BU508AWC
