View bu508df datasheet:

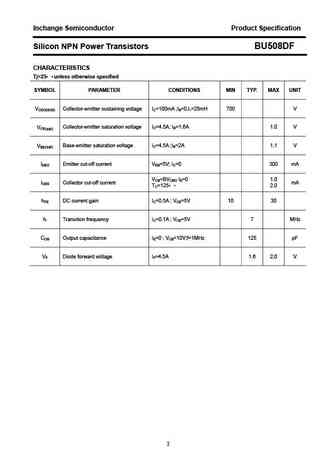

Inchange Semiconductor Product Specification Silicon NPN Power Transistors BU508DF DESCRIPTION With TO-3PFa package High voltage,high speed With integrated efficiency diode APPLICATIONS For use in horizontal deflection circuits of colour TV receivers PINNING PIN DESCRIPTION1 Base 2 Collector3 EmitterABSOLUTE MAXIMUM RATINGS(TC=25) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter 1500 V VCEO Collector-emitter voltage Open base 700 V VEBO Emitter-base voltage Open collector 5 V IC Collector current (DC) 8 A ICP Collector current (Pulse) 15 A IB Base current (DC) 4 A IBM Base current (Pulse) 6 A Ptot Total power dissipation TC=25 34 WMax.operating junction temperature 150 Tj Storage temperature -65~150 Tstg Inchange Semiconductor Product Specification Silicon NPN Power Transisto
