View cem3053 datasheet:

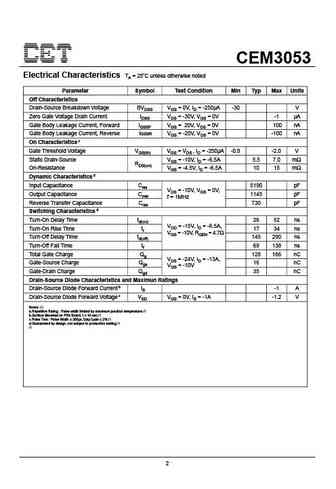

CEM3053P-Channel Enhancement Mode Field Effect Transistor PRELIMINARYFEATURES-30V, -15A, RDS(ON) = 7m @VGS = -10V. RDS(ON) = 15m @VGS = -4.5V.Super high dense cell design for extremely low RDS(ON).High power and current handing capability.D D D DLead-free plating ; RoHS compliant.8 7 6 5Surface mount Package. ESD Protected: 4000 VSO-81 2 3 41 S S S GABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise notedParameter Symbol Limit UnitsDrain-Source Voltage VDS -30 VGate-Source Voltage VGS 20 VDrain Current-Continuous ID -15 ADrain Current-Pulsed a IDM -60 AMaximum Power Dissipation PD 2.5 WOperating and Store Temperature Range TJ,Tstg -55 to 150 CParameter Symbol Limit UnitsThermal Resistance, Junction-to-Ambient b RJA 50 C/WThis is preliminary information on a new product in development now . Rev 3. 2012.MayDetails are su
