View cem3083 datasheet:

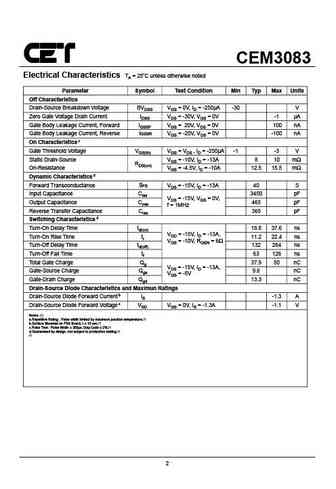

CEM3083P-Channel Enhancement Mode Field Effect TransistorFEATURES-30V, -13A, RDS(ON) = 10m @VGS = -10V. RDS(ON) = 15.5m @VGS = -4.5V.Super high dense cell design for extremely low RDS(ON).High power and current handing capability.D D D DLead free product is acquired.8 7 6 5Surface mount Package.SO-81 2 3 41 S S S GABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise notedParameter Symbol Limit UnitsDrain-Source Voltage VDS -30 VGate-Source Voltage VGS 20 VDrain Current-Continuous ID -13 ADrain Current-Pulsed a IDM -52 AMaximum Power Dissipation PD 2.5 WOperating and Store Temperature Range TJ,Tstg -55 to 150 CParameter Symbol Limit UnitsThermal Resistance, Junction-to-Ambient b RJA 50 C/W Rev 1. 2007.Jun.Details are subject to change without notice . http://www.cet-mos.com1CEM3083Electrical Characteristics TA = 25 C
