View cem4948 datasheet:

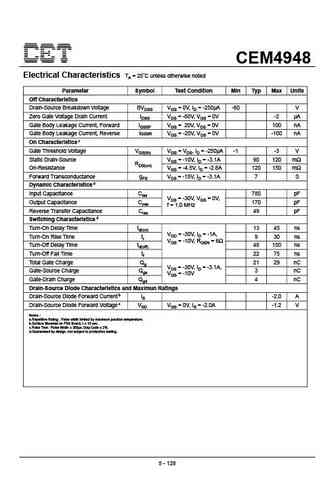

CEM4948Dual P-Channel Enhancement Mode Field Effect TransistorFEATURES5-60V, -3.1A, RDS(ON) = 120m @VGS = -10V. RDS(ON) = 150m @VGS = -4.5V.Super high dense cell design for extremely low RDS(ON).High power and current handing capability.Lead free product is acquired.D1 D1 D2 D28 7 6 5Surface mount Package.SO-81 2 3 41S1 G1 S2 G2ABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise notedParameter Symbol Limit UnitsDrain-Source Voltage VDS -60 VGate-Source Voltage VGS 20 VDrain Current-Continuous ID -3.1 ADrain Current-Pulsed a IDM -20 AMaximum Power Dissipation PD 2.0 WOperating and Store Temperature Range TJ,Tstg -55 to 150 CThermal CharacteristicsParameter Symbol Limit UnitsThermal Resistance, Junction-to-Ambient b RJA 62.5 C/W2004.June http://www.cetsemi.com5 - 127CEM4948Electrical Characteristics TA = 25 C unles
